NBR Glove Dipping

NBR glove dipping

Latex, curing paste and auxiliary products for NBR glove dipping

Market leading NBR latex dispersion and curing packages to meet ASTM and EN standards.
Auxiliary products available for each process stage to suit your process requirements.

Download the NBR glove dipping brochure (PDF)

Product Properties

The one-stop shop for materials in NBR glove dipping process

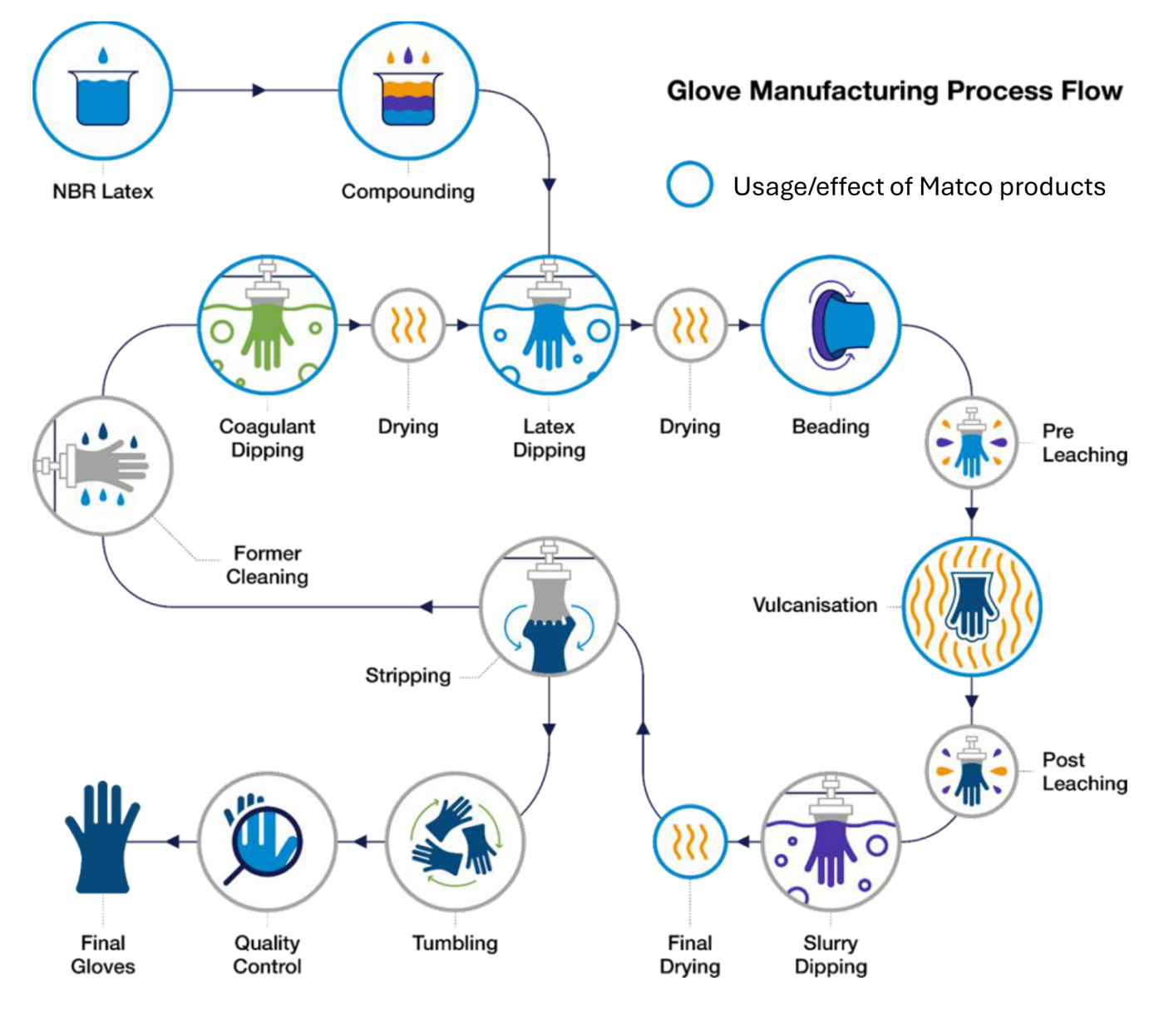

NBR glove manufacturing process flow: from NBR latex and compounding through coagulant and latex dipping, vulcanisation, leaching and stripping to final gloves

Glove properties made with NBR Latex

Below are typical properties of gloves made with NBR Latex containing our curing system Matcure V 3613 at a glove weight of ca. 3.5 g, cured at 120°C for 20 minutes.

Our product range offers a spectrum of properties to suit your requirements, and we can also tailor-make the curing system and auxiliary products to suit your process and final glove performance.

Force and strain at break (EN and ASTM standards are the minimum requirements)

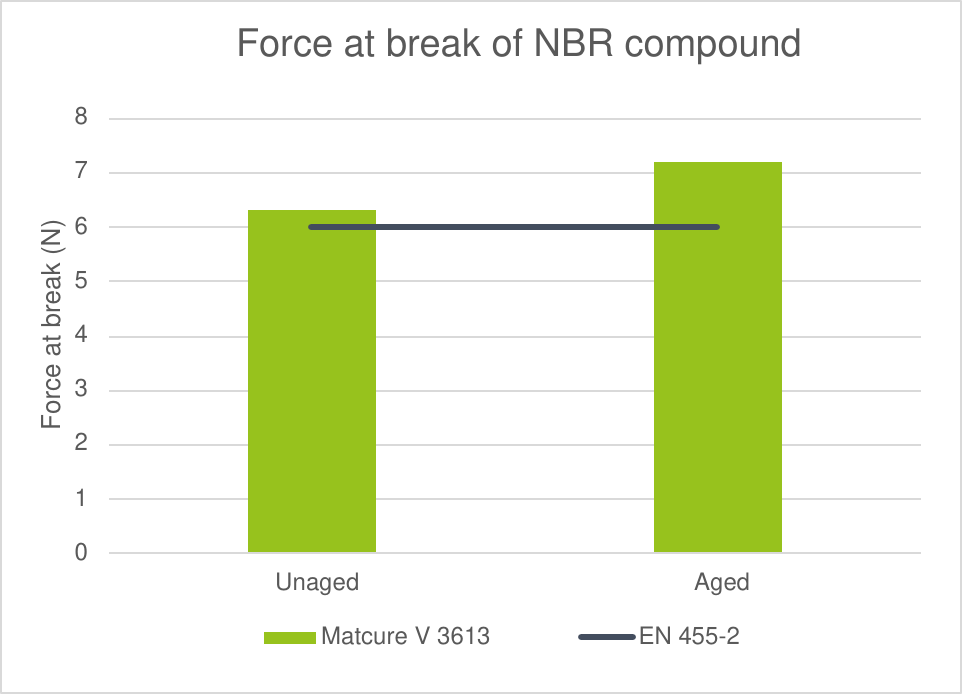

Force at break of NBR compound with Matcure V 3613, unaged and aged, compared with EN 455-2

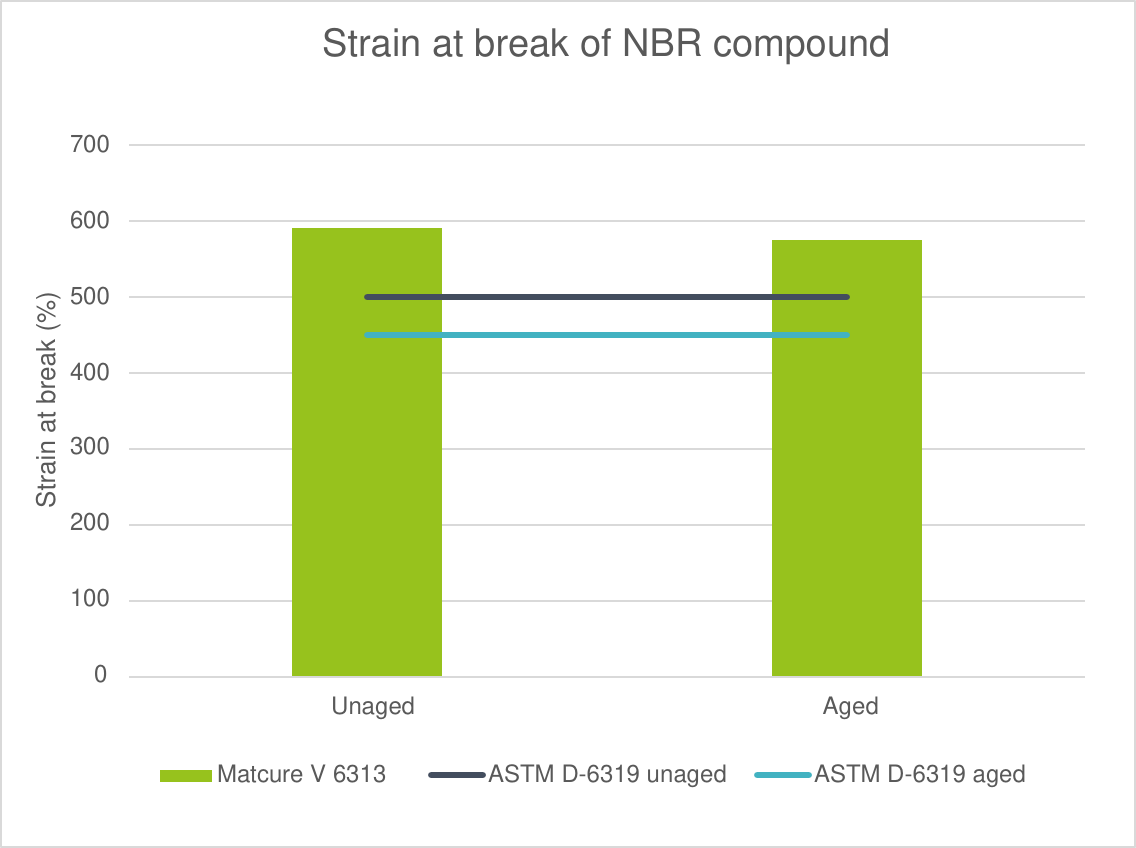

Strain at break of NBR compound with Matcure V 3613, unaged and aged, compared with ASTM D-6319

Stress at break and stress relaxation (ASTM and internal standards are the minimum requirements)

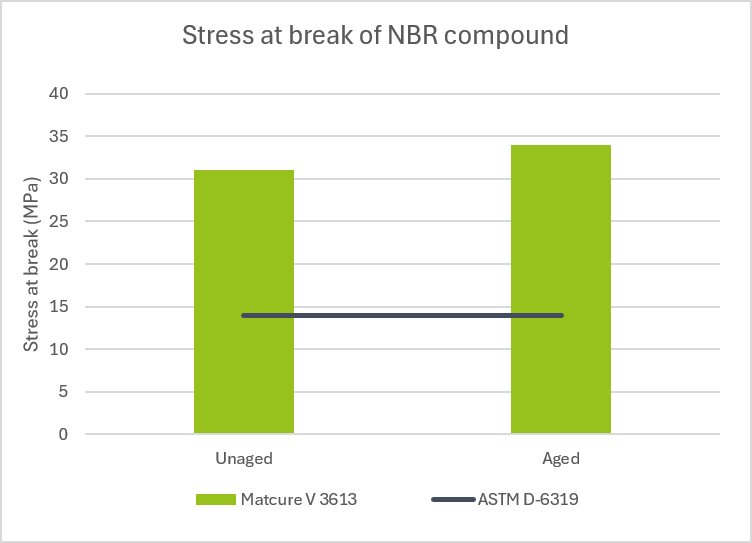

Stress at break of NBR compound with Matcure V 3613, unaged and aged, compared with ASTM D-6319

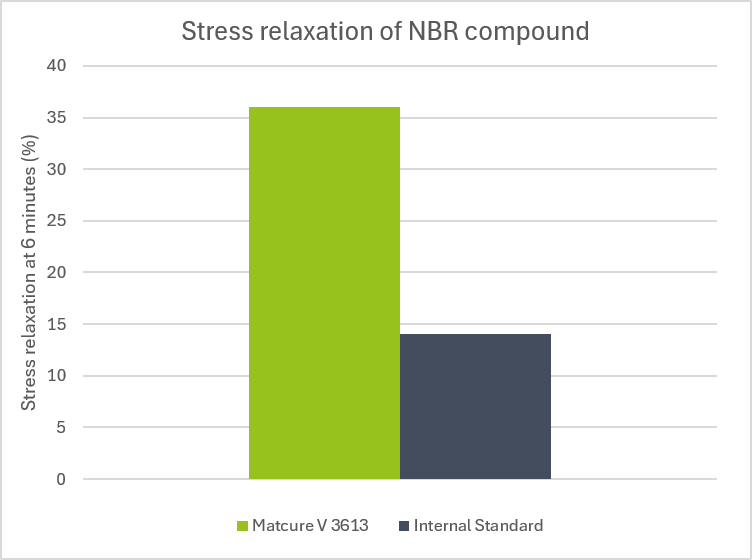

Stress relaxation at 6 minutes of NBR compound with Matcure V 3613 compared with internal standard

Durability, chemical permeation and solvent swell

With our range of curing systems, we can support you in achieving high-quality gloves with robust strength and a range of flexible or stretch property, as well as offering good durability according to international and internal standards. At the same time, the gloves also exhibit good chemical permeation performance.

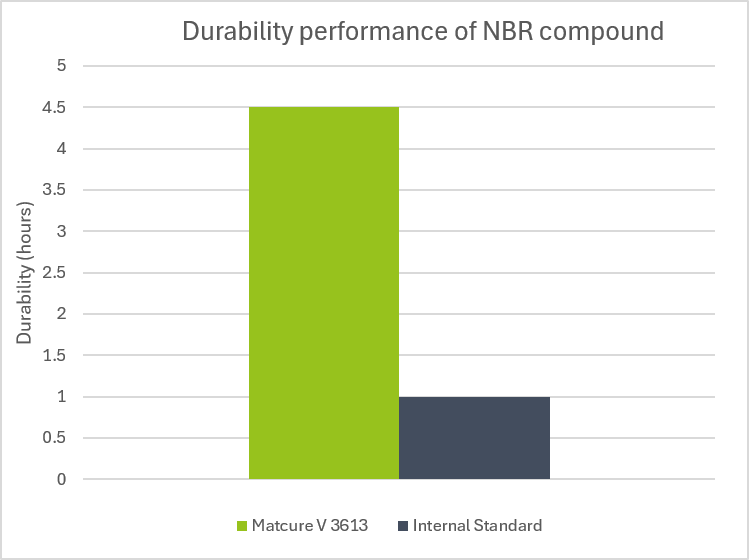

Durability performance of NBR compound with Matcure V 3613 compared with internal standard

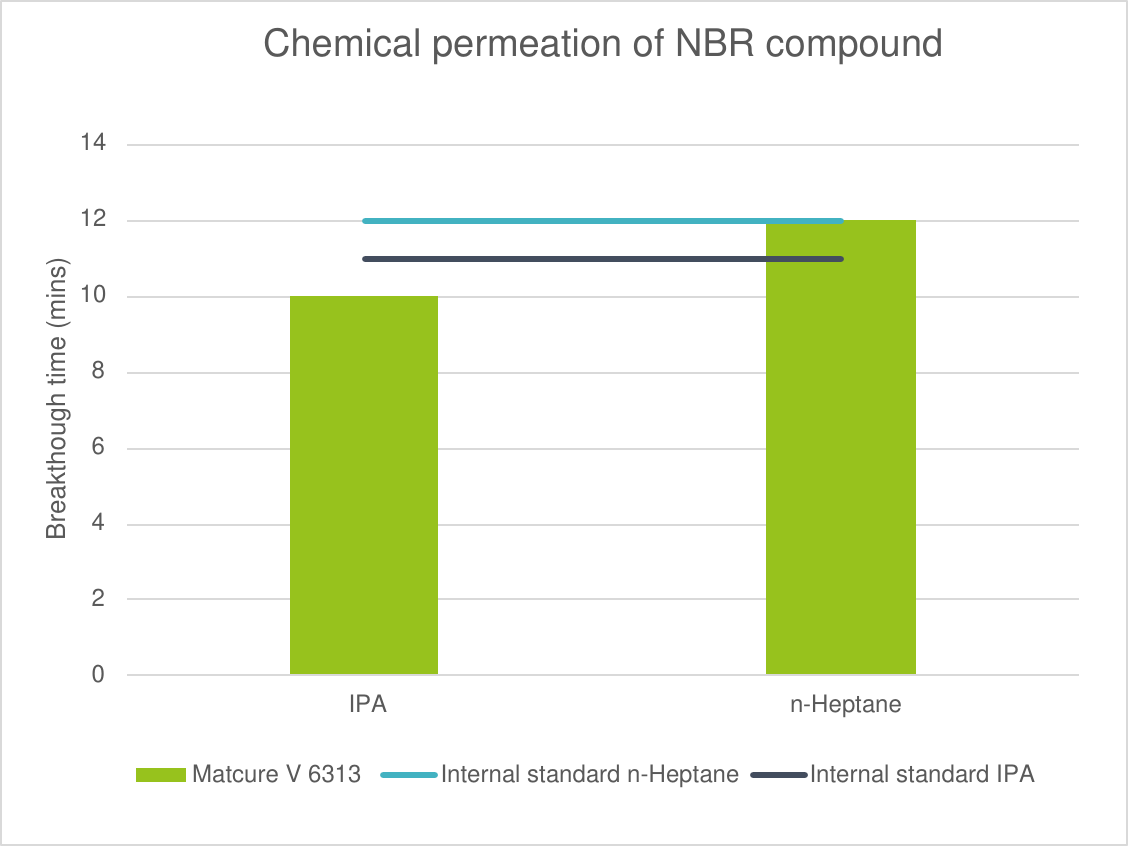

Chemical Permeation

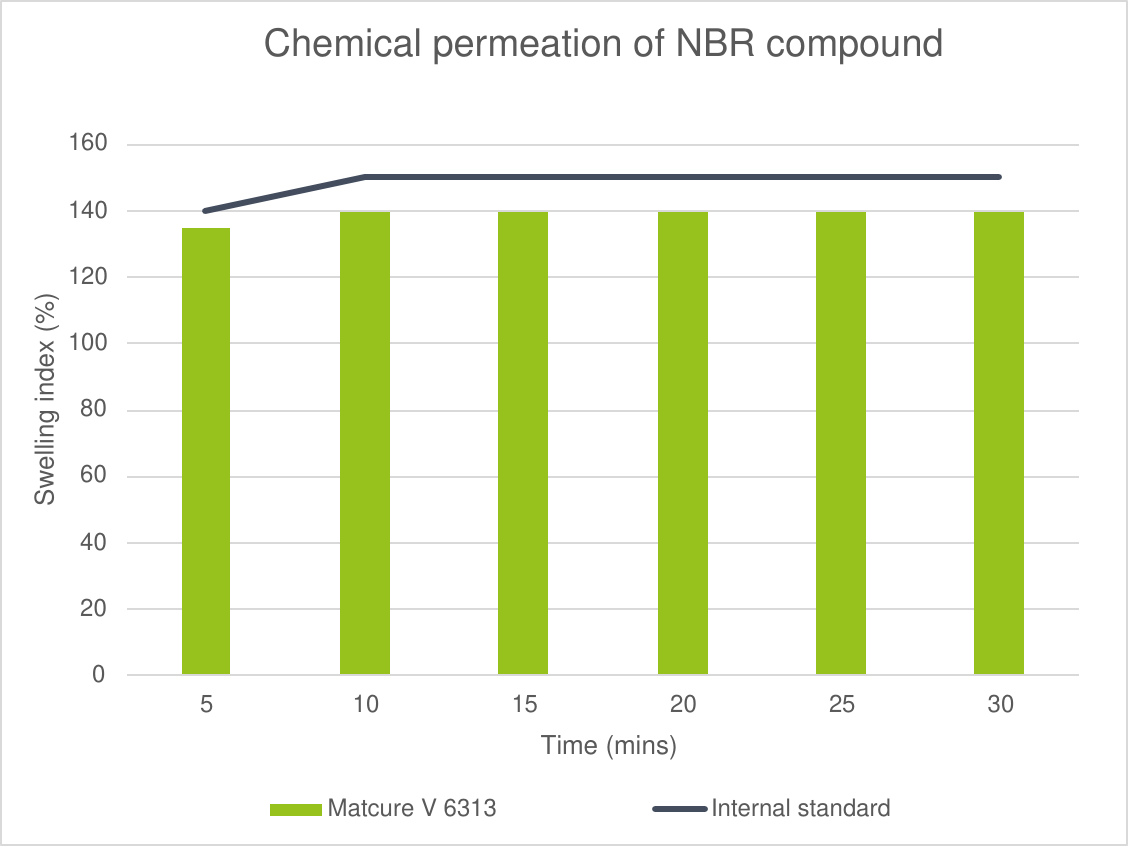

Solvent swelling index of NBR compound over 30 minutes compared with internal standard

Product Portfolio

NBR Latex Glove Dipping Portfolio

Product	Type	Solid Content	Function
MATCOTEX CL 9408	NBR Latex	42%	Formulated dipping latex
MATCURE V 3613	Vulcanisation paste	60%	Curing system
COAGULANT 3600	Coagulant	56%	Formulated coagulant
DIPCOAT 3300	Polymer coating	35%	Donning, powder-free

Pigment Dispersion	Concentrated Colour	Solid content	Function
ADDIMAT BLACK 3210	Black	28%	Black colourant
ADDIMAT BLUE 3521	Blue	45%	Blue colourant – non-staining
ADDIMAT GREEN 3502	Green	57%	Green colourant
ADDIMAT ORANGE 3516	Orange	51%	Orange colourant
ADDIMAT RED 3315	Red	32%	Red colourant
ADDIMAT VIOLET 3311	Violet	38%	Violet colourant
ADDIMAT WHITE 3511	White	53%	White colourant – TiO2

Curing Additives	Type	Solid content	Function
MATCURE D 3512	Crosslinker	50.5%	ZnO dispersion – 50% active
MATCURE D 3605	Crosslinker	63.5%	Sulphur dispersion – 60% active
MATCURE D 3603	Co-accelerator	60%	ZDEC dispersion – 57% active
ADDIMAT AO 3504	Antioxidant	53%	AO dispersion – unlabelled

Auxiliary Product	Type	Solid content	Function
ADDIMAT 3010	Defoaming agent	100%	Defoamer
ADDIMAT 3507	Release agent	50%	Demoulding aid
ADDIMAT 3701	Wetting agent	1%	Reduces surface tension
MATSURF 3304	Surfactant	31%	Latex stabiliser
ADDIMAT WAX	Wax dispersion	50%	Antiblocking, anti-tack, antiozonant

For further details or questions about our products, please contact the Matco Chemicals commercial team.

Application guide

Typical recipes in dipping process

Ingredient	Quantity	Manufacturing Conditions
MATCOTEX CL 9408	100 parts dry	Auxiliary components to be added if required (see options in product portfolio)
MATCURE V 3613	4,9 parts dry	Compound mature time: 3 hours (minimum)
ADDIMAT BLUE 3521	1 part dry	Typical curing schedule: 120°C for 10 to 20 minutes, depending on film thickness

Typical compounding recipe for disposable gloves (compounding solid content at 18–20%)

Ingredient	Quantity	Manufacturing Conditions
COAGULANT 3600	Dilute with water to 18 – 20% total dry solid	Drying Temperature: 100°C for 1 – 3 minutes

Typical coagulant bath recipe

Ingredient	Quantity	Manufacturing Conditions
DIPCOAT 3300	Dilute with water to 2 – 4% total dry solid	Drying Temperature: 100°C for 1 – 3 minutes

Typical dipcoat bath recipe

Purple NBR-coated work gloves on a production line

Tailor-made ready-for-use customised blends are possible, please contact our commercial team for details.

Matco NBR Glove Dipping Brochure (PDF)Download
